Day 7: Missing Data

panel data
code
analysis
Author

Robert W. Walker

Published

July 29, 2025

Slides

Missing Data

use "https://github.com/robertwwalker/Essex-Data/raw/main/ISQ99-Essex.dta"
xtset
drop if AINEW==.
xtset
* Give consideration to what we should do about the Lagged DV
drop if AILAG==.
* A note about long versus flong
mi set flong
* Note that it adds some variables; what are they?
mi describe
mi misstable summarize
* There are some logical restrictions that we are going to want.
* For example, we have some changes that need to be consistent
* with levels.  We can deal with that; just calculate the changes
* after imputation.
mi register imputed DEMOC3
mi impute regress DEMOC3 PERCHPCG PERCHPOP LPOP CWARCOW IWARCOW2, add(10) dots force
* mi impute regress PCGTHOU DEMOC3 PERCHPOP LPOP CWARCOW IWARCOW2, add(20)
mi estimate: xtreg AINEW AILAG DEMOC3, fe

The Data: Poe, Tate, Keith 1999

Two objectives. Load the data and transform it into a pdata.frame for now.

knitr::opts_chunk$set(warning=FALSE, message=FALSE, comment=NA, prompt=FALSE)
library(broom)
library(plm)
library(foreign)
library(tidyverse)
── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr     1.1.4     ✔ readr     2.1.5
✔ forcats   1.0.0     ✔ stringr   1.5.1
✔ ggplot2   3.5.2     ✔ tibble    3.3.0
✔ lubridate 1.9.4     ✔ tidyr     1.3.1
✔ purrr     1.1.0
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::between() masks plm::between()
✖ dplyr::filter()  masks stats::filter()
✖ dplyr::lag()     masks plm::lag(), stats::lag()
✖ dplyr::lead()    masks plm::lead()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
ISQ99_Essex <- read.dta("./img/ISQ99-Essex.dta")
ISQ99p <- pdata.frame(ISQ99_Essex, c("IDORIGIN", "YEAR"))

pdata.frame

Will allow R to answer many questions that stata’s xt commands make available. First, some basic summaries to get to balance.

summary(ISQ99_Essex)
    IDORIGIN          YEAR            AI              SD            POLRT
 Min.   :  2.0   Min.   :1976   Min.   :1.000   Min.   :1.000   Min.   :1.00
 1st Qu.:290.0   1st Qu.:1980   1st Qu.:2.000   1st Qu.:1.000   1st Qu.:2.00
 Median :435.0   Median :1984   Median :3.000   Median :2.000   Median :3.00
 Mean   :446.7   Mean   :1984   Mean   :2.753   Mean   :2.241   Mean   :3.81
 3rd Qu.:640.0   3rd Qu.:1989   3rd Qu.:3.000   3rd Qu.:3.000   3rd Qu.:6.00
 Max.   :990.0   Max.   :1993   Max.   :5.000   Max.   :5.000   Max.   :7.00
                                NA's   :1061    NA's   :587     NA's   :382
      MIL2             LEFT             BRIT            PCGNP
 Min.   :0.0000   Min.   :0.0000   Min.   :0.0000   Min.   :   52
 1st Qu.:0.0000   1st Qu.:0.0000   1st Qu.:0.0000   1st Qu.:  390
 Median :0.0000   Median :0.0000   Median :0.0000   Median : 1112
 Mean   :0.2725   Mean   :0.1764   Mean   :0.3554   Mean   : 3592
 3rd Qu.:1.0000   3rd Qu.:0.0000   3rd Qu.:1.0000   3rd Qu.: 3510
 Max.   :1.0000   Max.   :1.0000   Max.   :1.0000   Max.   :36670
 NA's   :382      NA's   :393      NA's   :290      NA's   :443
     AINEW           SDNEW           IDGURR          AILAG          SDLAG
 Min.   :1.000   Min.   :1.000   Min.   :  2.0   Min.   :1.00   Min.   :1.000
 1st Qu.:1.000   1st Qu.:1.000   1st Qu.:290.0   1st Qu.:1.00   1st Qu.:1.000
 Median :2.000   Median :2.000   Median :450.0   Median :2.00   Median :2.000
 Mean   :2.443   Mean   :2.262   Mean   :455.8   Mean   :2.45   Mean   :2.247
 3rd Qu.:3.000   3rd Qu.:3.000   3rd Qu.:663.0   3rd Qu.:3.00   3rd Qu.:3.000
 Max.   :5.000   Max.   :5.000   Max.   :990.0   Max.   :5.00   Max.   :5.000
 NA's   :468     NA's   :468                     NA's   :644    NA's   :644
    PERCHPCG          PERCHPOP            LPOP          PCGTHOU
 Min.   :-95.500   Min.   :-48.450   Min.   :11.00   Min.   : 0.050
 1st Qu.: -2.545   1st Qu.:  0.910   1st Qu.:14.51   1st Qu.: 0.390
 Median :  4.615   Median :  2.220   Median :15.59   Median : 1.110
 Mean   :  4.614   Mean   :  2.193   Mean   :15.48   Mean   : 3.592
 3rd Qu.: 11.760   3rd Qu.:  2.940   3rd Qu.:16.64   3rd Qu.: 3.510
 Max.   :128.570   Max.   :126.010   Max.   :20.89   Max.   :36.670
 NA's   :618       NA's   :293       NA's   :115     NA's   :443
     DEMOC3          CWARCOW           IWARCOW2
 Min.   : 0.000   Min.   :0.00000   Min.   :0.00000
 1st Qu.: 0.000   1st Qu.:0.00000   1st Qu.:0.00000
 Median : 0.000   Median :0.00000   Median :0.00000
 Mean   : 3.682   Mean   :0.09201   Mean   :0.08621
 3rd Qu.: 9.000   3rd Qu.:0.00000   3rd Qu.:0.00000
 Max.   :10.000   Max.   :1.00000   Max.   :1.00000
 NA's   :793      NA's   :407       NA's   :380
table(ISQ99_Essex$IDORIGIN)

    2    20    31    40    41    42    51    52    53    55    56    57    59
   18    18    18    18    18    18    18    18    18    18    18    18    18
   70    90    91    92    93    94    95    96   100   101   110   115   130
   18    18    18    18    18    18    18    18    18    18    18    18    18
  135   140   145   150   155   160   165   200   205   210   211   212   220
   18    18    18    18    18    18    18    18    18    18    18    18    18
  225   230   235   260   265   290   305   310   315   316   325   333   339
   18    18    18    18    18    18    18    18    18    18    18    18    18
  345   346   347   348   349   350   352   355   360   365   366   367   368
   18    18    18    18    18    18    18    18    18    18    18    18    18
  369   370   371   372   373   374 374.1 374.2 374.3 374.4 374.5   375   380
   18    18    18    18    18    18    18    18    18    18    18    18    18
  385   390   395   402   403   404   411   420   432   433   434   435   436
   18    18    18    18    18    18    18    18    18    18    18    18    18
  437   438   439   450   451   452   461   471   475   481   482   483   484
   18    18    18    18    18    18    18    18    18    18    18    18    18
  490   500   501   510   516   517   520   525   530   531   540   541   551
   18    18    18    18    18    18    18    18    18    18    18    18    18
  552   553   560   562   570   571   572   580   581   590   591   600   615
   18    18    18    18    18    18    18    18    18    18    18    18    18
  616   620   625   630   640   645   651   652   660   663   666   670   678
   18    18    18    18    18    18    18    18    18    18    18    18    18
  680   690   692   694   696   698   700   710   712   713   732   740   750
   18    18    18    18    18    18    18    18    18    18    18    18    18
  760   770   771   775   780   781   790   800   811   812   815   820   821
   18    18    18    18    18    18    18    18    18    18    18    18    18
  830   840   850   900   910   911   914   920   950   990
   18    18    18    18    18    18    18    18    18    18
table(ISQ99_Essex$YEAR)

1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991
 179  179  179  179  179  179  179  179  179  179  179  179  179  179  179  179
1992 1993
 179  179
is.pbalanced(ISQ99p)
[1] TRUE

Is any variable time invariant?

pvar(ISQ99p)
no time variation:       IDORIGIN BRIT IDGURR AILAG SDLAG PERCHPCG PERCHPOP
no individual variation: YEAR AI SD POLRT MIL2 LEFT BRIT PCGNP AINEW SDNEW AILAG SDLAG PERCHPCG PERCHPOP LPOP PCGTHOU DEMOC3 CWARCOW IWARCOW2
all NA in time dimension for at least one individual:  AI SD POLRT MIL2 LEFT BRIT PCGNP AINEW SDNEW AILAG SDLAG PERCHPCG PERCHPOP LPOP PCGTHOU DEMOC3 CWARCOW IWARCOW2
all NA in ind. dimension for at least one time period: AI SD POLRT MIL2 LEFT BRIT PCGNP AINEW SDNEW AILAG SDLAG PERCHPCG PERCHPOP LPOP PCGTHOU DEMOC3 CWARCOW IWARCOW2

Visualizations of Missingness

library(visdat)

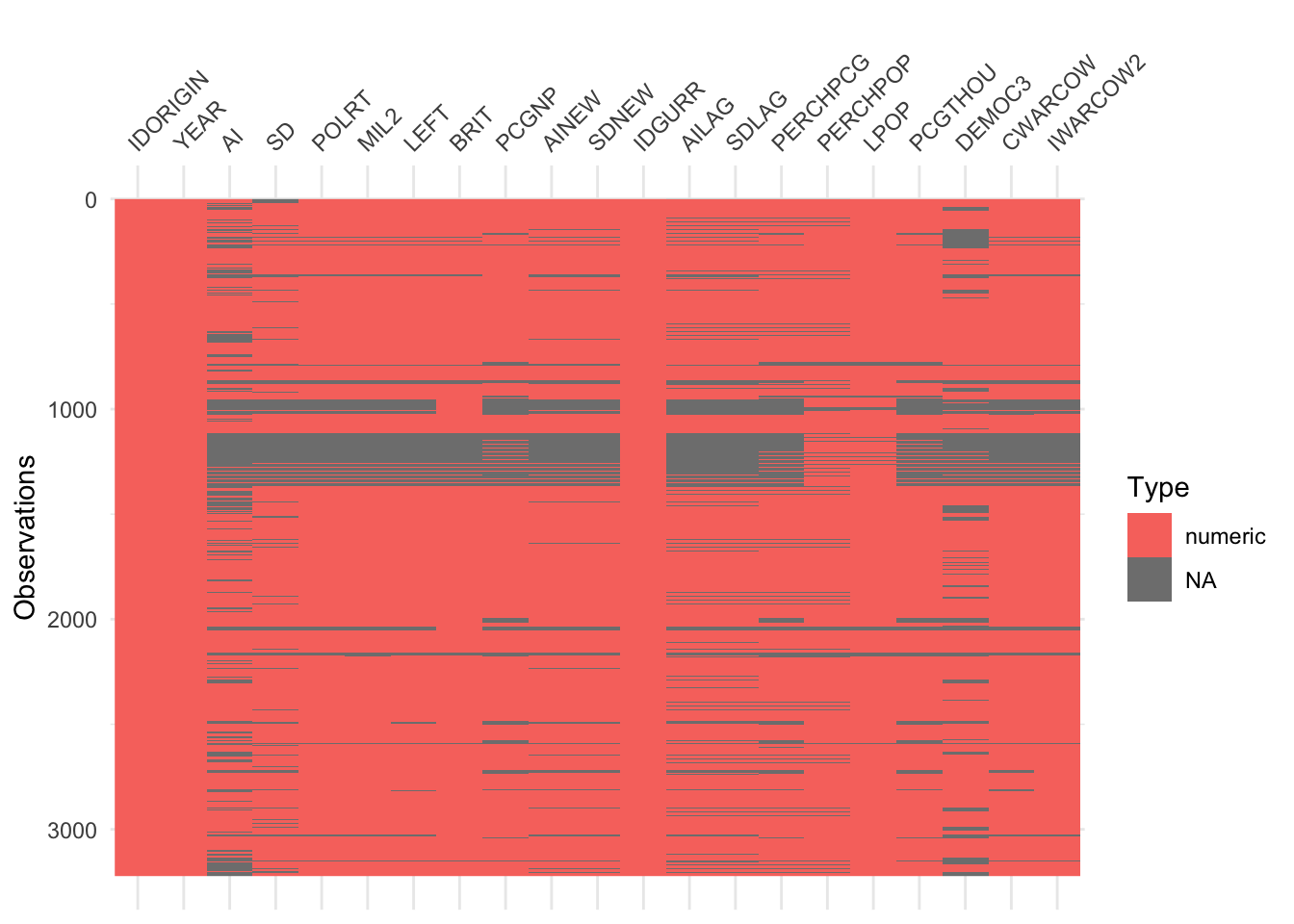

vis_dat(ISQ99_Essex)

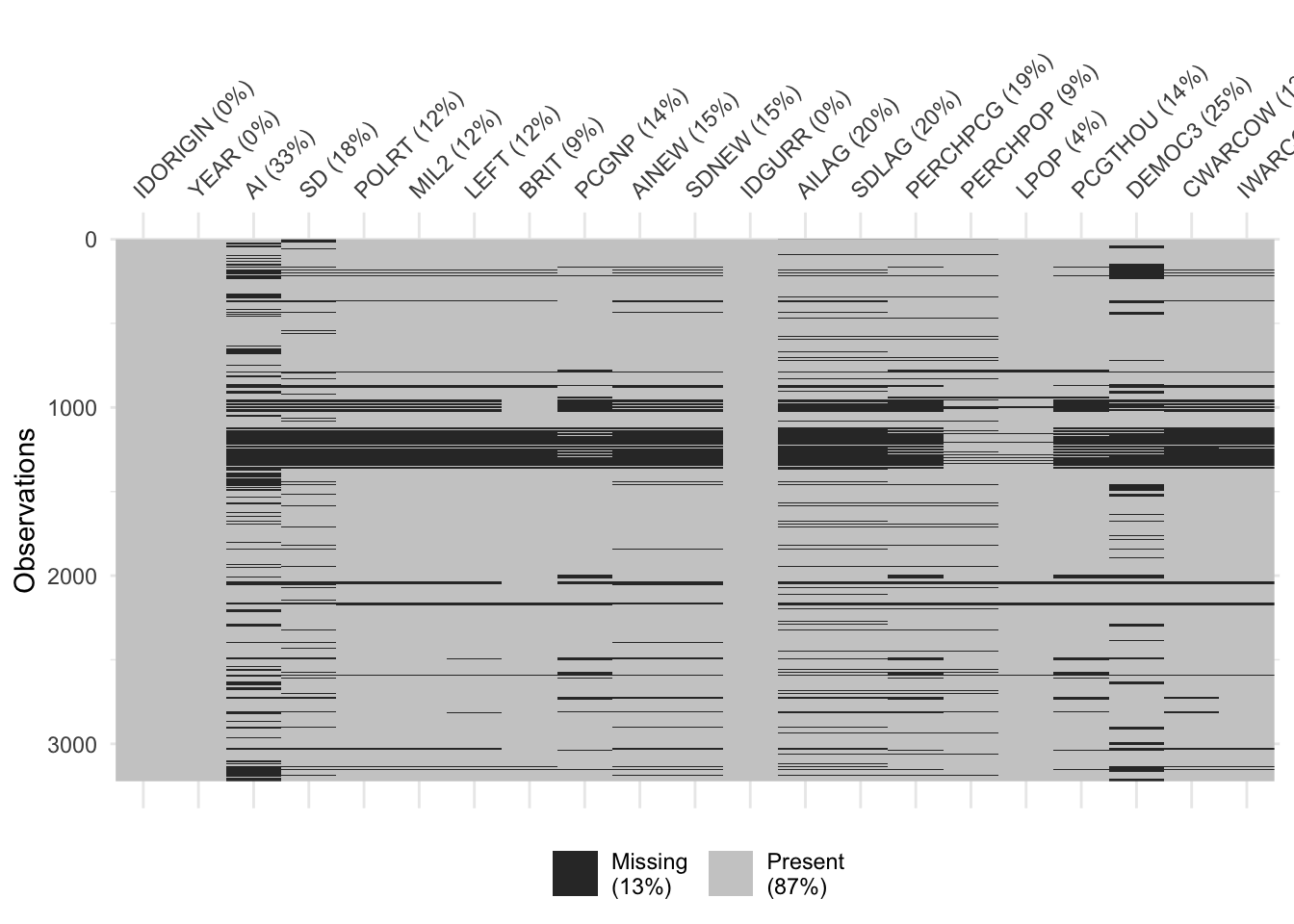

vis_miss(ISQ99_Essex)

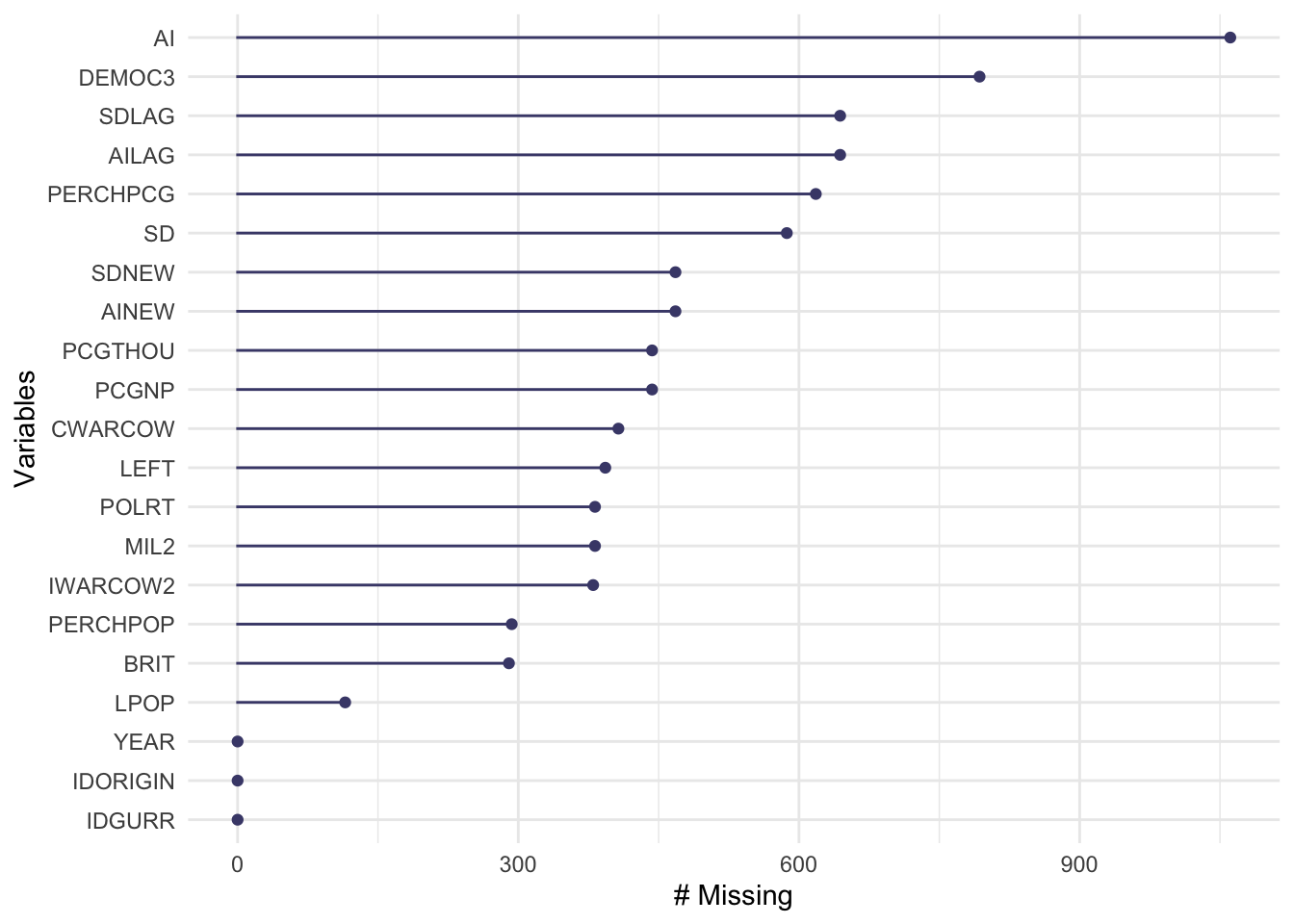

Univariate

library(ggplot2)
library(naniar)
mplot <- gg_miss_var(ISQ99_Essex)
mplot

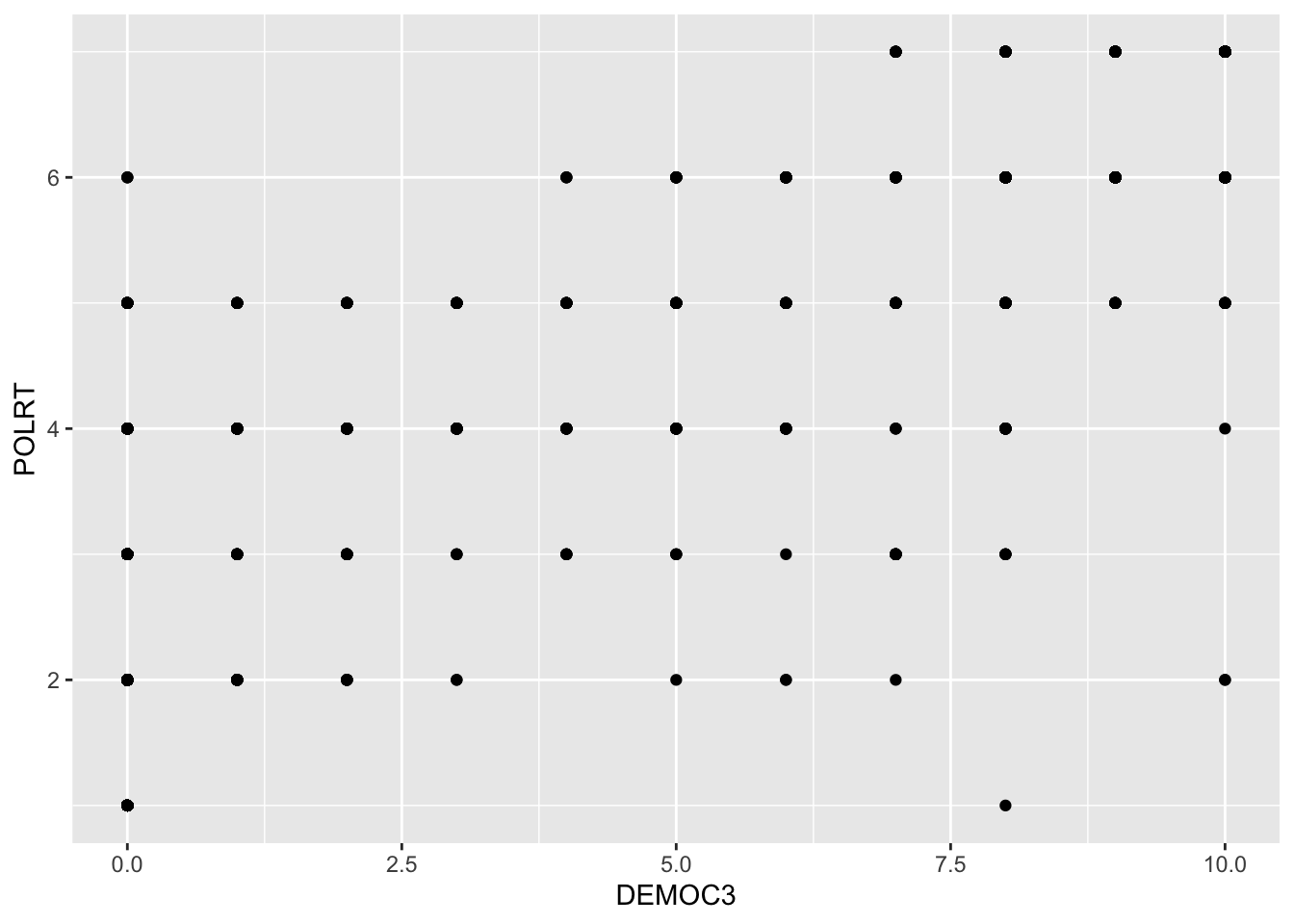

Bivariate

mplot <- ggplot(ISQ99_Essex,
       aes(x = DEMOC3,
           y = POLRT)) +
  geom_point()
mplot

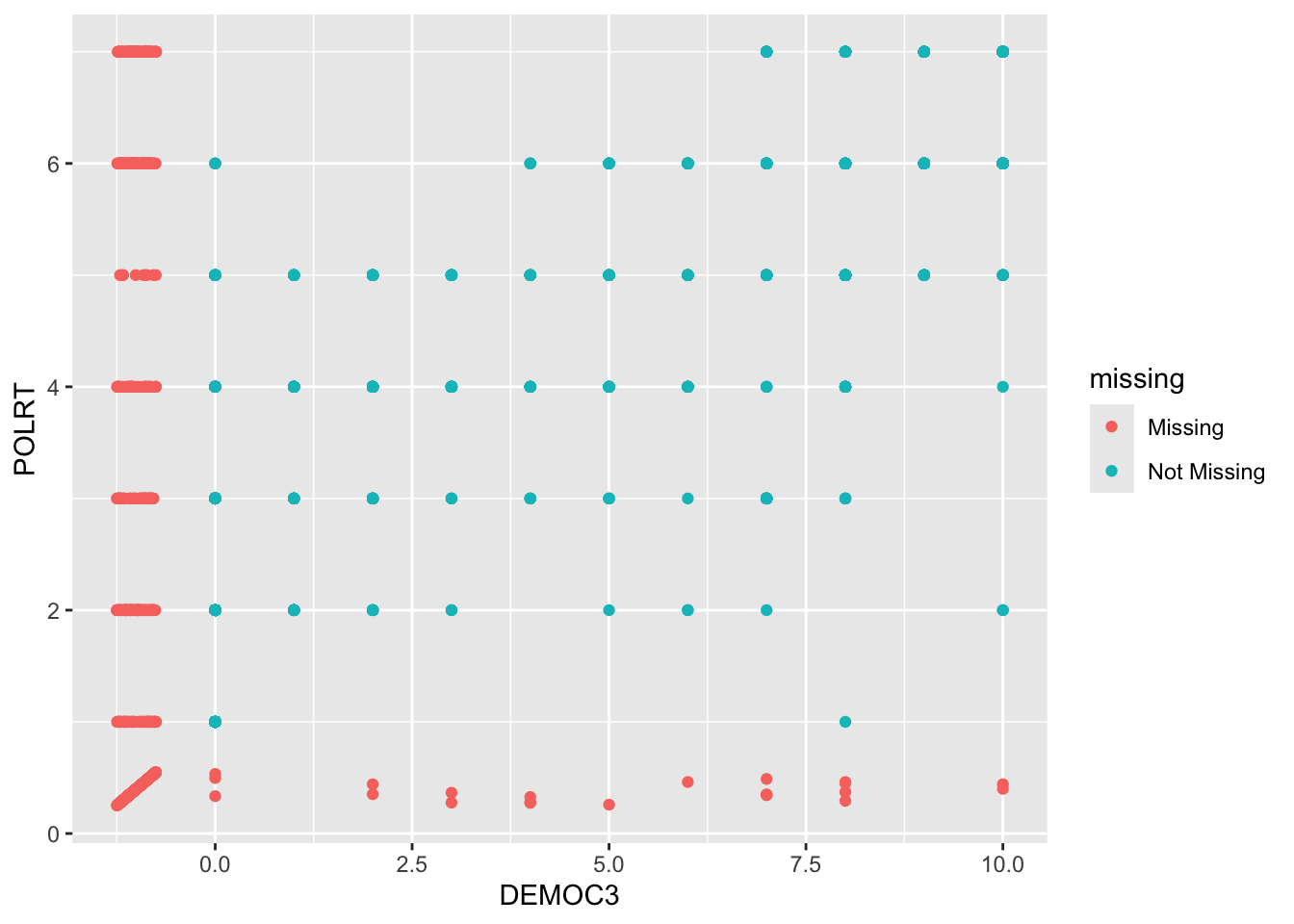

library(naniar)
mplot <- ggplot(ISQ99_Essex,
       aes(x = DEMOC3,
           y = POLRT)) +
  geom_miss_point()
mplot

Multiple Imputation: Amelia II

A simple multivariate normal is easy as long as the data are well behaved. NB: This uses none of the time series or cross-sectional dimensionality for identification.

library(Amelia)
#library(Zelig)
# Shorten the dataset
ISQ99.4MI <- ISQ99_Essex[,c(1,2,5:11,13:21)]
a.out <- amelia(ISQ99.4MI, m=5, ts="YEAR", cs="IDORIGIN", noms=c("MIL2","LEFT","BRIT","CWARCOW","IWARCOW2"), ords = c("AINEW","SDNEW","AILAG","SDLAG","POLRT"))
Warning: There are observations in the data that are completely missing.
         These observations will remain unimputed in the final datasets.
-- Imputation 1 --

  1  2  3  4  5  6  7

-- Imputation 2 --

  1  2  3  4  5  6  7  8  9

-- Imputation 3 --

  1  2  3  4  5  6  7  8

-- Imputation 4 --

  1  2  3  4  5  6  7  8  9 10

-- Imputation 5 --

  1  2  3  4  5  6

Without simplifying, it crashes because there are id variables of different sorts and other things hiding in there, perfect multicollinearities exist. Even with them, we need a bit more work.

Transforms are Key

Using the cs and ts information with polytime/splinetime and intercs

a.out2 <- amelia(ISQ99.4MI, m=5, ts="YEAR", cs="IDORIGIN", polytime=2, intercs=FALSE, noms=c("MIL2","LEFT","BRIT","CWARCOW","IWARCOW2"), ords = c("AINEW","SDNEW","AILAG","SDLAG","POLRT"), p2s=2, emburn = c(20,50))

amelia starting
beginning prep functions
Variables used:  POLRT PCGNP AINEW SDNEW AILAG SDLAG PERCHPCG PERCHPOP LPOP PCGTHOU DEMOC3 noms.MIL2.2 noms.LEFT.2 noms.BRIT.2 noms.CWARCOW.2 noms.IWARCOW2.2 time.1 time.2
running bootstrap
-- Imputation 1 --
setting up EM chain indicies

  1(189)  2(182)  3(155)  4(89)  5(13)  6(9)  7(6)  8(1)  9(0) 10(0) 11(0) 12(0) 13(0) 14(0) 15(0) 16(0) 17(0) 18(0) 19(0) 20
(0)

 saving and cleaning

running bootstrap
-- Imputation 2 --
setting up EM chain indicies

  1(189)  2(182)  3(162)  4(87)  5(14)  6(5)  7(1)  8(0)  9(0) 10(0) 11(0) 12(0) 13(0) 14(0) 15(0) 16(0) 17(0) 18(0) 19(0) 20
(0)

 saving and cleaning

running bootstrap
-- Imputation 3 --
setting up EM chain indicies

  1(188)  2(183)  3(157)  4(76)  5(29)  6(17)  7(8)  8(0)  9(0) 10(0) 11(0) 12(0) 13(0) 14(0) 15(0) 16(0) 17(0) 18(0) 19(0) 20
(0)

 saving and cleaning

running bootstrap
-- Imputation 4 --
setting up EM chain indicies

  1(189)  2(181)  3(153)  4(60)  5(20)  6(13)  7(7)  8(2)  9(0) 10(0) 11(0) 12(0) 13(0) 14(0) 15(0) 16(0) 17(0) 18(0) 19(0) 20
(0)

 saving and cleaning

running bootstrap
-- Imputation 5 --
setting up EM chain indicies

  1(189)  2(181)  3(160)  4(90)  5(25)  6(12)  7(3)  8(0)  9(0) 10(0) 11(0) 12(0) 13(0) 14(0) 15(0) 16(0) 17(0) 18(0) 19(0) 20
(0)

 saving and cleaning
summary(a.out2)

Amelia output with 5 imputed datasets.
Return code:  1
Message:  Normal EM convergence.

Chain Lengths:
--------------
Imputation 1:  20
Imputation 2:  20
Imputation 3:  20
Imputation 4:  20
Imputation 5:  20

Rows after Listwise Deletion:  2144
Rows after Imputation:  3222
Patterns of missingness in the data:  65

Fraction Missing for original variables:
-----------------------------------------

         Fraction Missing
IDORIGIN       0.00000000
YEAR           0.00000000
POLRT          0.11855990
MIL2           0.11855990
LEFT           0.12197393
BRIT           0.09000621
PCGNP          0.13749224
AINEW          0.14525140
SDNEW          0.14525140
AILAG          0.19987585
SDLAG          0.19987585
PERCHPCG       0.19180633
PERCHPOP       0.09093731
LPOP           0.03569212
PCGTHOU        0.13749224
DEMOC3         0.24612042
CWARCOW        0.12631906
IWARCOW2       0.11793917

Now let’s analyze it.

Some Analysis

Not a correct model but a first start.

# devtools::install_github("IQSS/ZeligChoice")
library(clarify)
model.list <- with(a.out, lm(AINEW ~ AILAG + MIL2 + LEFT + BRIT + CWARCOW + IWARCOW2 + PCGTHOU + PERCHPOP + DEMOC3))
si <- misim(model.list, n=1000)
si
A `clarify_misim` object
 - 10 coefficients, 5 imputations with 1000 simulated values each
 - sampled distributions: multivariate t(3160)
est_mi <- sim_ame(si, var = "DEMOC3", verbose = FALSE)
summary(est_mi)
                Estimate   2.5 %  97.5 %
E[dY/d(DEMOC3)]  -0.0324 -0.0418 -0.0230

More General

all_imputations <- dplyr::bind_rows(unclass(a.out2$imputations), .id = "m") %>%
  group_by(m) %>%
  nest()
all_imputations
# A tibble: 5 × 2
# Groups:   m [5]
  m     data
  <chr> <list>
1 imp1  <tibble [3,222 × 18]>
2 imp2  <tibble [3,222 × 18]>
3 imp3  <tibble [3,222 × 18]>
4 imp4  <tibble [3,222 × 18]>
5 imp5  <tibble [3,222 × 18]>
models_imputations <- all_imputations %>%
  mutate(model = data %>% map(~ lm(AINEW ~ AILAG + MIL2 + LEFT + BRIT + CWARCOW + IWARCOW2 + PCGTHOU + PERCHPOP + DEMOC3, data = .)),
         tidied = model %>% map(~ tidy(., conf.int = TRUE)),
         glance = model %>% map(~ glance(.)))

models_imputations
# A tibble: 5 × 5
# Groups:   m [5]
  m     data                  model  tidied            glance
  <chr> <list>                <list> <list>            <list>
1 imp1  <tibble [3,222 × 18]> <lm>   <tibble [10 × 7]> <tibble [1 × 12]>
2 imp2  <tibble [3,222 × 18]> <lm>   <tibble [10 × 7]> <tibble [1 × 12]>
3 imp3  <tibble [3,222 × 18]> <lm>   <tibble [10 × 7]> <tibble [1 × 12]>
4 imp4  <tibble [3,222 × 18]> <lm>   <tibble [10 × 7]> <tibble [1 × 12]>
5 imp5  <tibble [3,222 × 18]> <lm>   <tibble [10 × 7]> <tibble [1 × 12]>
params <- models_imputations %>%
  unnest(tidied) %>%
  select(m, term, estimate, std.error) %>%
  gather(key, value, estimate, std.error) %>%
  spread(term, value)
params
# A tibble: 10 × 12
# Groups:   m [5]
   m     key      `(Intercept)`  AILAG    BRIT CWARCOW   DEMOC3 IWARCOW2    LEFT
   <chr> <chr>            <dbl>  <dbl>   <dbl>   <dbl>    <dbl>    <dbl>   <dbl>
 1 imp1  estimate        1.08   0.607  -0.106   0.583  -0.0314    0.187  -0.0867
 2 imp1  std.err…        0.0485 0.0136  0.0279  0.0454  0.00380   0.0456  0.0362
 3 imp2  estimate        1.04   0.623  -0.125   0.520  -0.0334    0.201  -0.114
 4 imp2  std.err…        0.0462 0.0129  0.0267  0.0436  0.00364   0.0443  0.0353
 5 imp3  estimate        0.999  0.637  -0.121   0.537  -0.0281    0.106  -0.0685
 6 imp3  std.err…        0.0455 0.0128  0.0264  0.0432  0.00364   0.0431  0.0343
 7 imp4  estimate        1.03   0.625  -0.116   0.503  -0.0313    0.162  -0.0360
 8 imp4  std.err…        0.0469 0.0132  0.0271  0.0458  0.00373   0.0441  0.0348
 9 imp5  estimate        1.05   0.615  -0.0938  0.521  -0.0291    0.245  -0.0686
10 imp5  std.err…        0.0465 0.0130  0.0269  0.0445  0.00367   0.0428  0.0351
# ℹ 3 more variables: MIL2 <dbl>, PCGTHOU <dbl>, PERCHPOP <dbl>
just_coefs <- params %>%
  filter(key == "estimate") %>%
  ungroup() %>%
  select(-m, -key)
just_coefs
# A tibble: 5 × 10
  `(Intercept)` AILAG    BRIT CWARCOW  DEMOC3 IWARCOW2    LEFT   MIL2 PCGTHOU
          <dbl> <dbl>   <dbl>   <dbl>   <dbl>    <dbl>   <dbl>  <dbl>   <dbl>
1         1.08  0.607 -0.106    0.583 -0.0314    0.187 -0.0867 0.112  -0.0163
2         1.04  0.623 -0.125    0.520 -0.0334    0.201 -0.114  0.0874 -0.0142
3         0.999 0.637 -0.121    0.537 -0.0281    0.106 -0.0685 0.133  -0.0162
4         1.03  0.625 -0.116    0.503 -0.0313    0.162 -0.0360 0.113  -0.0146
5         1.05  0.615 -0.0938   0.521 -0.0291    0.245 -0.0686 0.106  -0.0193
# ℹ 1 more variable: PERCHPOP <dbl>
just_ses <- params %>%
  filter(key == "std.error") %>%
  ungroup() %>%
  select(-m, -key)
just_ses
# A tibble: 5 × 10
  `(Intercept)`  AILAG   BRIT CWARCOW  DEMOC3 IWARCOW2   LEFT   MIL2 PCGTHOU
          <dbl>  <dbl>  <dbl>   <dbl>   <dbl>    <dbl>  <dbl>  <dbl>   <dbl>
1        0.0485 0.0136 0.0279  0.0454 0.00380   0.0456 0.0362 0.0316 0.00255
2        0.0462 0.0129 0.0267  0.0436 0.00364   0.0443 0.0353 0.0305 0.00250
3        0.0455 0.0128 0.0264  0.0432 0.00364   0.0431 0.0343 0.0301 0.00246
4        0.0469 0.0132 0.0271  0.0458 0.00373   0.0441 0.0348 0.0312 0.00251
5        0.0465 0.0130 0.0269  0.0445 0.00367   0.0428 0.0351 0.0308 0.00248
# ℹ 1 more variable: PERCHPOP <dbl>
coefs_melded <- mi.meld(just_coefs, just_ses)
coefs_melded
$q.mi
     (Intercept)     AILAG       BRIT  CWARCOW      DEMOC3  IWARCOW2
[1,]    1.040136 0.6214036 -0.1124235 0.532683 -0.03064904 0.1803708
            LEFT      MIL2     PCGTHOU      PERCHPOP
[1,] -0.07470803 0.1102575 -0.01613081 -0.0009362572

$se.mi
     (Intercept)      AILAG       BRIT    CWARCOW      DEMOC3   IWARCOW2
[1,]  0.05578001 0.01796531 0.03039278 0.05577991 0.004347858 0.07137014
           LEFT       MIL2     PCGTHOU    PERCHPOP
[1,] 0.04696314 0.03575381 0.003344076 0.003508067
coefs_melded$q.mi / coefs_melded$se.mi
     (Intercept)    AILAG      BRIT  CWARCOW    DEMOC3 IWARCOW2     LEFT
[1,]    18.64711 34.58908 -3.699019 9.549729 -7.049229 2.527259 -1.59078
         MIL2   PCGTHOU   PERCHPOP
[1,] 3.083796 -4.823697 -0.2668869
