A replication
This is an example with an ECM from a model presented by DeBoef and Keele in their excellent paper “Taking Time Seriously: Dynamic Regression.” The data come from a paper Gilmour and Wolbrecht.
use "https://github.com/robertwwalker/Essex-Data/raw/main/dgw.dta", clear
* These data have already been time set:
tsset
* The dependent variable in this example is Congressional Approval
*Table 2
reg capp l.capp econexp nytavg kg hb vetoes override intrasum mbill
bgodfrey, lag(1 2 3)
library (haven); library (tidyverse); library (fpp3)
── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr 1.1.4 ✔ readr 2.1.5
✔ forcats 1.0.0 ✔ stringr 1.5.1
✔ ggplot2 3.5.2 ✔ tibble 3.3.0
✔ lubridate 1.9.4 ✔ tidyr 1.3.1
✔ purrr 1.1.0
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag() masks stats::lag()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
Registered S3 method overwritten by 'tsibble':
method from
as_tibble.grouped_df dplyr
── Attaching packages ──────────────────────────────────────────── fpp3 1.0.1 ──
✔ tsibble 1.1.6 ✔ feasts 0.4.1
✔ tsibbledata 0.4.1 ✔ fable 0.4.1
── Conflicts ───────────────────────────────────────────────── fpp3_conflicts ──
✖ lubridate::date() masks base::date()
✖ dplyr::filter() masks stats::filter()
✖ tsibble::intersect() masks base::intersect()
✖ tsibble::interval() masks lubridate::interval()
✖ dplyr::lag() masks stats::lag()
✖ tsibble::setdiff() masks base::setdiff()
✖ tsibble::union() masks base::union()
<- read_stata ("https://github.com/robertwwalker/Essex-Data/raw/main/dgw.dta" )<- dgw.data %>% filter (! is.na (year))<- dgw.data %>% mutate (date = paste0 (year," Q" ,quarter, sep= "" )) %>% mutate (dateQ = yearquarter (date))<- dgw.data %>% as_tsibble (index= dateQ)# A dynamic linear model %>% model (TSLM (capp~ lag (capp,1 )+ econexp+ nytavg+ kg+ hb+ vetoes+ override+ intrasum+ mbills)) %>% report ()
Series: capp
Model: TSLM
Residuals:
Min 1Q Median 3Q Max
-9.1137 -1.3908 -0.1014 1.5446 7.0873
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 9.37793 3.33043 2.816 0.00634 **
lag(capp, 1) 0.79605 0.05166 15.409 < 2e-16 ***
econexp 0.07173 0.03090 2.321 0.02323 *
nytavg 0.20716 0.06982 2.967 0.00413 **
kg -1.29097 1.08646 -1.188 0.23881
hb -4.68564 1.69975 -2.757 0.00746 **
vetoes 0.24382 0.08898 2.740 0.00781 **
override -0.99198 0.55252 -1.795 0.07697 .
intrasum -0.16907 0.12199 -1.386 0.17021
mbills -0.43939 0.28270 -1.554 0.12469
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 2.976 on 69 degrees of freedom
Multiple R-squared: 0.885, Adjusted R-squared: 0.8699
F-statistic: 58.97 on 9 and 69 DF, p-value: < 2.22e-16
*Table 2 with Pres. Approval
reg capp l.capp p_prap econexp nytavg kg hb vetoes override intrasum mbill
bgodfrey, lag(1 2 3)
%>% model (TSLM (capp~ lag (capp,1 )+ p_prap+ econexp+ nytavg+ kg+ hb+ vetoes+ override+ intrasum+ mbills)) %>% report ()
Series: capp
Model: TSLM
Residuals:
Min 1Q Median 3Q Max
-8.4892 -1.3161 -0.1978 1.7633 6.3624
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 10.13865 3.38461 2.996 0.00382 **
lag(capp, 1) 0.77084 0.05585 13.803 < 2e-16 ***
p_prap 0.04708 0.04024 1.170 0.24610
econexp 0.08161 0.03195 2.554 0.01290 *
nytavg 0.20342 0.06971 2.918 0.00477 **
kg -1.61049 1.11745 -1.441 0.15411
hb -4.87343 1.70280 -2.862 0.00559 **
vetoes 0.24012 0.08880 2.704 0.00865 **
override -0.96229 0.55163 -1.744 0.08560 .
intrasum -0.14809 0.12298 -1.204 0.23267
mbills -0.46652 0.28290 -1.649 0.10375
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 2.968 on 68 degrees of freedom
Multiple R-squared: 0.8872, Adjusted R-squared: 0.8706
F-statistic: 53.5 on 10 and 68 DF, p-value: < 2.22e-16
The Breusch-Godfrey test
sapply (c (1 : 3 ), function (x) {lmtest:: bgtest (lm (capp~ lag (capp,1 )+ p_prap+ econexp+ nytavg+ kg+ hb+ vetoes+ override+ intrasum+ mbills, data= dgw.ts), order = x)})
[,1]
statistic 0.5038368
parameter 1
method "Breusch-Godfrey test for serial correlation of order up to 1"
p.value 0.4778191
data.name character,2
coefficients numeric,12
vcov numeric,144
[,2]
statistic 1.043041
parameter 2
method "Breusch-Godfrey test for serial correlation of order up to 2"
p.value 0.5936172
data.name character,2
coefficients numeric,13
vcov numeric,169
[,3]
statistic 1.531487
parameter 3
method "Breusch-Godfrey test for serial correlation of order up to 3"
p.value 0.6750225
data.name character,2
coefficients numeric,14
vcov numeric,196
* An Alternate Measure
* ADL
reg capp l.capp p_prap l.p_prap econexp l.econexp nytavg l.nytavg kg hb vetoes override intrasum mbill
fitstat
bgodfrey, lag(1 2 3)

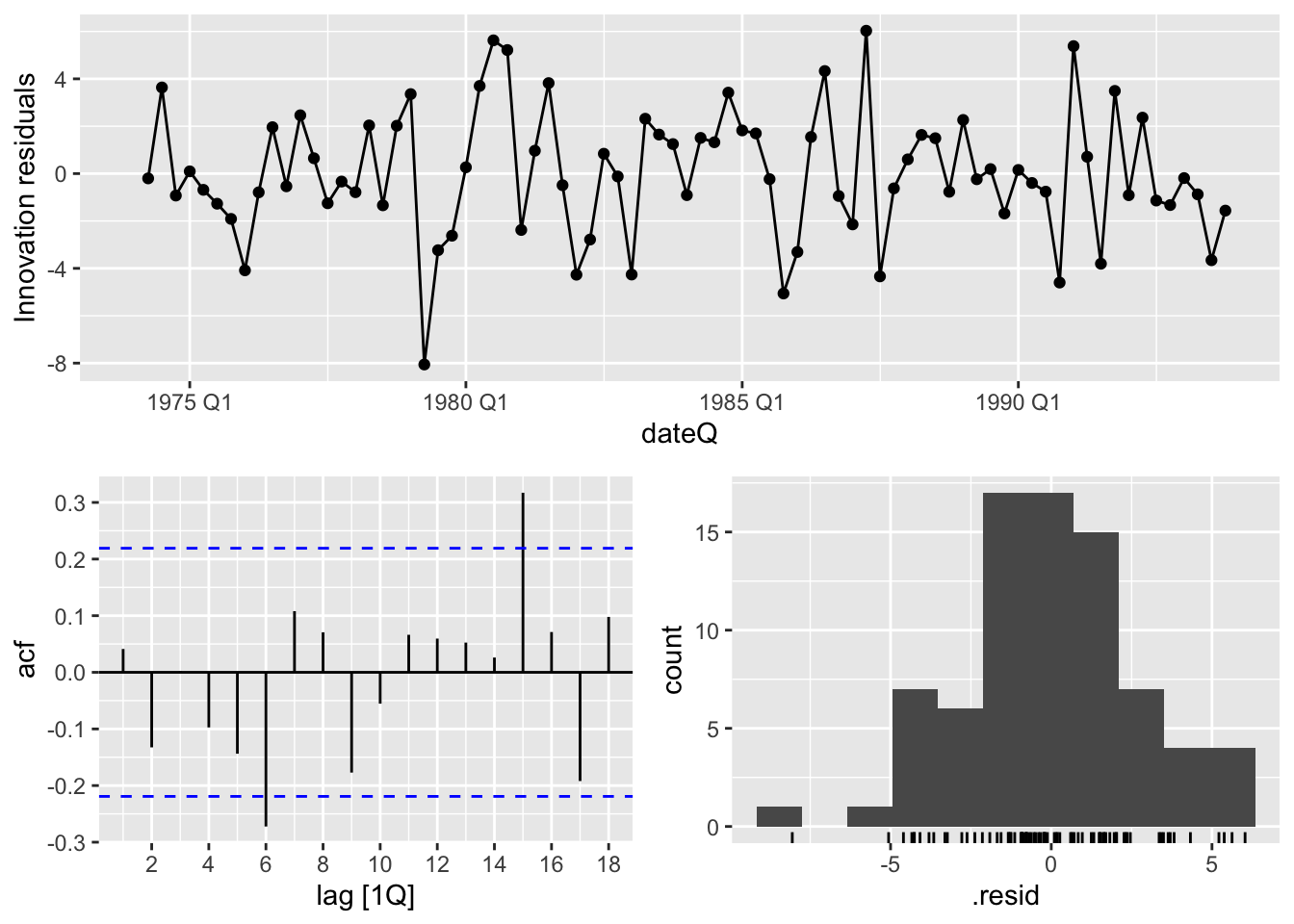

%>% model (TSLM (capp~ lag (capp, 1 )+ p_prap+ lag (p_prap, 1 )+ econexp+ lag (econexp,1 )+ nytavg+ lag (nytavg, 1 )+ kg+ hb+ vetoes+ override+ intrasum+ mbills)) %>% gg_tsresiduals ()
Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_line()`).
Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_point()`).
Warning: Removed 1 row containing non-finite outside the scale range
(`stat_bin()`).
reg capp l.capp p_prap l.p_prap econexp l.econexp nytavg l.nytavg l2.nytavg kg hb vetoes override intrasum mbill
fitstat
test l.p_prap
summary (lm (capp~ dplyr:: lag (capp, 1 )+ p_prap+ dplyr:: lag (p_prap, 1 )+ econexp+ dplyr:: lag (econexp, 1 )+ nytavg+ dplyr:: lag (nytavg, 1 ) + dplyr:: lag (nytavg, 2 )+ kg+ hb+ vetoes+ override+ intrasum+ mbills, data= dgw.data))
Call:
lm(formula = capp ~ dplyr::lag(capp, 1) + p_prap + dplyr::lag(p_prap,
1) + econexp + dplyr::lag(econexp, 1) + nytavg + dplyr::lag(nytavg,
1) + dplyr::lag(nytavg, 2) + kg + hb + vetoes + override +
intrasum + mbills, data = dgw.data)
Residuals:
Min 1Q Median 3Q Max
-7.2813 -1.1587 -0.2843 1.5055 5.5623
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 13.255444 4.027775 3.291 0.00164 **
dplyr::lag(capp, 1) 0.726775 0.065844 11.038 2.31e-16 ***
p_prap 0.138223 0.057373 2.409 0.01892 *
dplyr::lag(p_prap, 1) -0.093813 0.055274 -1.697 0.09459 .
econexp 0.005848 0.070969 0.082 0.93459
dplyr::lag(econexp, 1) 0.082163 0.072223 1.138 0.25959
nytavg 0.192404 0.071465 2.692 0.00908 **
dplyr::lag(nytavg, 1) 0.023006 0.069422 0.331 0.74144
dplyr::lag(nytavg, 2) 0.138535 0.078110 1.774 0.08097 .
kg -1.566093 1.122181 -1.396 0.16774
hb -4.340598 1.715171 -2.531 0.01389 *
vetoes 0.283759 0.101779 2.788 0.00700 **
override -1.061008 0.580564 -1.828 0.07235 .
intrasum -0.107917 0.122254 -0.883 0.38074
mbills -0.715715 0.304646 -2.349 0.02196 *
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 2.914 on 63 degrees of freedom
(2 observations deleted due to missingness)
Multiple R-squared: 0.8992, Adjusted R-squared: 0.8768
F-statistic: 40.14 on 14 and 63 DF, p-value: < 2.2e-16
anova (lm (capp~ dplyr:: lag (capp, 1 )+ p_prap+ econexp+ dplyr:: lag (econexp, 1 )+ nytavg+ dplyr:: lag (nytavg, 1 ) + dplyr:: lag (nytavg, 2 )+ kg+ hb+ vetoes+ override+ intrasum+ mbills, data= dgw.data), lm (capp~ dplyr:: lag (capp, 1 )+ p_prap+ dplyr:: lag (p_prap, 1 )+ econexp+ dplyr:: lag (econexp, 1 )+ nytavg+ dplyr:: lag (nytavg, 1 ) + dplyr:: lag (nytavg, 2 )+ kg+ hb+ vetoes+ override+ intrasum+ mbills, data= dgw.data))
Analysis of Variance Table
Model 1: capp ~ dplyr::lag(capp, 1) + p_prap + econexp + dplyr::lag(econexp,
1) + nytavg + dplyr::lag(nytavg, 1) + dplyr::lag(nytavg,
2) + kg + hb + vetoes + override + intrasum + mbills
Model 2: capp ~ dplyr::lag(capp, 1) + p_prap + dplyr::lag(p_prap, 1) +
econexp + dplyr::lag(econexp, 1) + nytavg + dplyr::lag(nytavg,
1) + dplyr::lag(nytavg, 2) + kg + hb + vetoes + override +
intrasum + mbills
Res.Df RSS Df Sum of Sq F Pr(>F)
1 64 559.29
2 63 534.83 1 24.454 2.8806 0.09459 .
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
*ECM
reg d.capp l.capp d.p_prap l.p_prap d.econexp l.econexp d.nytavg l.nytavg kg hb vetoes override intrasum mbill
bgodfrey, lag(1 2 3)
summary (lm (difference (capp)~ dplyr:: lag (capp, 1 ) + difference (p_prap) + dplyr:: lag (p_prap, 1 )+ difference (econexp)+ lag (econexp, 1 )+ difference (nytavg) + dplyr:: lag (nytavg) + kg + hb + vetoes + override + intrasum + mbills, data= dgw.data))
Call:
lm(formula = difference(capp) ~ dplyr::lag(capp, 1) + difference(p_prap) +
dplyr::lag(p_prap, 1) + difference(econexp) + lag(econexp,
1) + difference(nytavg) + dplyr::lag(nytavg) + kg + hb +
vetoes + override + intrasum + mbills, data = dgw.data)
Residuals:
Min 1Q Median 3Q Max
-8.0575 -1.2991 -0.2338 1.6723 6.0297
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 9.92398 3.59485 2.761 0.007490 **
dplyr::lag(capp, 1) -0.22348 0.05979 -3.738 0.000394 ***
difference(p_prap) 0.11480 0.05548 2.069 0.042508 *
dplyr::lag(p_prap, 1) 0.02166 0.04356 0.497 0.620667
difference(econexp) 0.02214 0.07027 0.315 0.753732
lag(econexp, 1) 0.08156 0.03311 2.463 0.016420 *
difference(nytavg) 0.18074 0.07179 2.518 0.014290 *
dplyr::lag(nytavg) 0.22229 0.09152 2.429 0.017921 *
kg -1.36022 1.12380 -1.210 0.230519
hb -4.24191 1.72938 -2.453 0.016865 *
vetoes 0.20605 0.09261 2.225 0.029567 *
override -0.75686 0.55956 -1.353 0.180870
intrasum -0.12549 0.12277 -1.022 0.310504
mbills -0.53209 0.28906 -1.841 0.070217 .
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 2.939 on 65 degrees of freedom
(1 observation deleted due to missingness)
Multiple R-squared: 0.4115, Adjusted R-squared: 0.2938
F-statistic: 3.496 on 13 and 65 DF, p-value: 0.0003862
*Bewley
ivreg capp p_prap d.p_prap econexp d.econexp nytavg d.nytavg kg hb vetoes override intrasum mbill (d.capp = l.capp p_prap l.p_prap econexp l.econexp nytavg l.nytavg)
Cointegration and Error Correction
Studying long-run relationships between two variables \(Y_t\) and \(X_t\) .Question: do Y and X travel together thru time in dynamic equilibrium?
Methodology developed by Engle and Granger 1987
Determine if \(Y_t\) and \(X_t\) are nonstationary
If \(Y_t\) and \(X_t\) are nonstationary, regress \(Y_t\) on \(X_t\) and save residuals. This is called the cointegrating regression
Do unit-root test on residuals - if residuals are stationary, \(Y_t\) and \(X_t\) cointegrate (travel together over time). If residuals are not stationary then \(Y_t\) and \(X_t\) do not cointegrate
Engle and Granger show that if \(Y_t\) and \(X_t\) cointegrate, then their relationship can be specified as an error correction model:
\[
(1-L)Y_t = B_0 + B_1(1-L)X_t + a(\underbrace{Y_{t-1} - c_0 - c_1X_{t-1}}_{\textrm{Cointegration residual, lagged}}) + e_t
\]
In this model \(B_1\) captures the short-run effect of X on Y
\((Y_{t-1} -c_0 - c_1X_{t-1})\) is called the error correction mechanism and it captures the long-run effect of X on Y. In the Engle-Granger “two-step” methodology, the error correction mechanism is measured by the residuals from the cointegrating regression lagged back 1 period
The coefficient \(a\) is an adjustment parameter which is expected to be less than 1 in absolute value and to carry a negative sign. The larger the absolute value of a, the stronger the error correction mechanism. a indicates the speed with which a shock to Y is eroded by the cointegrating realtionship between Y and X
The error correction model is estimated by OLS regression.
Note that cointegration does not imply causation, and it is up to the investigator to determine if \(Y_t\) or \(X_t\) is the dependent variable and to defend the implicit assumption of 1-way causation.
ADL and Cointegration
The error correction model is a restricted autoregressive distributed lag (ADL) (1,1) model (see Hendry, 1995):
\[
(1-L)Yt = B_0 + B_1(1-L)X_t + a(Y_{t-1} - C_0 - C_1X_{t-1}) + e_t
\] \[
Y_t - Y_{t-1} = B_0 + B_1X_t - B_1X_{t-1} + aY_{t-1} + aC_0 - aC_1X_{t-1} + e_t
\] \[
Y_t = B_0 + aC_0 + Y_{t-1} + aY_{t-1} + B_1 X_t - (B_1 + aC_1)X_{t-1} + e_t
\]
if Y and X cointegrate then a should be less than 1 in absolute value and carry a negative sign
ADL (1,1) model - 1 lag of Y and 1 lag of X
\[
Y_t = B_0 -aC_0 + (1-a)Y_{t-1} + B_1 X_t - (B_1 -aC_1)X_{t-1} + e_t
\]
if a = -.5, this implies that the coefficient on aYt-1 = (1-.5) = .5, so 50% of a shock to Y at time t will erode in each subsequent period.
Reference: David Hendry. 1995. Dynamic Econometrics . Oxford: Oxford University Press
